Quarries

Dust Control
Using our new range of spray machines we can now offer the most expansive range of equipment, ranging from small nozzle systems for conveyers all the way up to our fan assisted misters

Spraystream 40 dust suppression machine generates a consistent stream of micro rain to agglomerate airborne particles and prevent the escape of fugitive dust.

Spraystream 40 provides effective control of airborne particles at open-air sites where dust is generated through stockpiling, breaking, handling of bulk solids.


Mobile Atomiser
....................................
Fixed Atomiser
....................................
Mobile Nozzle
....................................
Fixed Nozzle
....................................
Sprinklers
....................................
Foam Dust Control
....................................
Evaporation
....................................
Quarries
....................................
Demolition
.

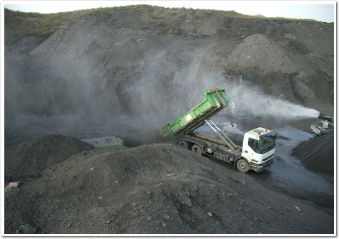

Quarries

General specifications:

Steel chassis with ball bearing turning ring mounted on three zinc plated legs. The aerodynamic shaped cone is made out of fibreglass composite with an integrated nozzle ring. The horizontal turn is electrical and manual operated over a range of 360o. The vertical movement is operated by hand.

  • surface coverage 6500 metres2
  • oscillator gives 360o movement
  • adjustable angle of throw 10o to 40o
  • waterflow 1 - 4,9m3/h
  • throw up to 45m
  • integrated stainless steel filtersystem
  • pressure monitoring over the filter

Water specifications

  • a constant press of 0.5bar needed to be delivered to the pump
  • water boosted up to 20bar through the boosterpump
  • stainless steel boosterpump
  • waterbox filtersystem from 500µm with flush system
  • two separate feedlines from waterbox to nozzlering
  • waterhose with quick disconnection fitting 1-1/2"
  • stainless steel nozzlering
  • 35 stainless steel nozzles
  • droplet size spectrum vary from 50 to 150µm

Electrical specifications

  • 3x400V at 50/Hz
  • fan 5,5kW
  • boosterpump 4kW
  • oscillator 0,2kW
  • full load current <22A
  • integrated steel cabinet
  • other international motors available

Dimensions

  • length 1650mm
  • width 1200mm
  • height 1750mm
  • weight 330kg

Chemical additives

  • crust forming additives
  • odour control systems
  • watersurfactant

Options

  • booster pump 5,5kW
  • waterflow control
  • dosing pump
  • remote control 8 functions

Applications

  • stockpile operations
  • fire fighting purposes
  • neutralisation of chemical clouds
  • truck dumps
  • ship terminals
  • demolition sites
  • outdoor blasting areas
  • mines/quarries
  • building demolitions
  • refresh of public manifestations

Water press (Bar) and Waterflow (l/m)
3 - 27,0
4 - 33,7
5 - 40,3
6 - 47,0
10 - 53,7
15 - 67,0
20 - 79,1
